Multiple Unit Styles, Multiple Life Styles
All EVOX products feature compact unit size and a highly compatible system that can flexibly adapt to existing spaces and equipment, making installing and replacing a heat pump system in your home a real ease.
MULTI-POSITION AIR
HANDLER
WALL-MOUNTED TYPE
AIR HANDLER
HIGH STATIC PRESSURE
CEILING-TYPE AIR HANDLER
DUAL-FUEL
SYSTEM (COIL)
Multi-Position
Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT AIRFLOW ECM MOTOR 2.0
PROVIDES CONSISTENT AIRFLOW UP
TO 0.8 IN. W.C.
·
ELECTRONIC EXPANSION VALVE (EEV)
CONTROL
·
OPTIONAL AUXILIARY HEAT KITS UP
TO 25KW
·
ALL-ALUMINUM COIL
SEER2 Up to
18.0
EER2 Up to
12.4
HSPF2 Up to
10
1.5-5 Tones
A
1.5-2 tones:
17.5”
21.0”
45.0”
B
2.5-4 tones:
21.0”
21.0”
49.0”
C
1.5-2 tones:
24.5”
21.0”
58.0”
CONSTANT AIRFLOW TECHNOLOGY 2.0
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
Different Ductwork Designs, Same Air Volume
Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume
ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment
CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)
Wall-Mounted
Type Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT AIRFLOW ECM MOTOR
2.0 PROVIDES CONSISTENT AIR
FLOW OF UP TO 0.8 IN. W.C.;
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
OPTIONAL AUXILIARY HEAT KITS
UP TO 10KW
·
ALL-ALUMINUM COIL
SEER2 Up to
19.3
EER2 Up to
12.1
HSPF2 Up to
10.8
1.5-3 Tones
A
1.5-2 tones:
20.3”
x
15.7”
x
36.5”
C
2.5-3 tones:
22.0”
x
19.0”
x
40.0”
CONSTANT AIRFLOW TECHNOLOGY 2.0
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
Different Ductwork Designs, Same Air Volume
Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume
ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment
CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)
High Static Pressure
Ceiling-Type
Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT TORQUE ECM MOTOR
PROVIDES SUFFICIENT AIRFLOW
OF UP TO 0.8 IN. W.C.;
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
OPTIONAL AUXILIARY HEAT KITS
UP TO 10KW
·
ALL-ALUMINUM COIL
SEER2 Up to
19.0
EER2 Up to
12.4
HSPF2 Up to
9.9
1.5-3 Tons
A
1.5 tons:
43.2”
x
10.9”
x
23.3”
C
2.5 tons:
55.2”
x
10.9”
x
23.3”
B
2 tons:
49.1”
x
10.9”
x
23.3”
C
3 tons:
62.1”
x
10.9”
x
23.3”
AMONGST THE HIGHEST STATIC PRESSURE IN THE INDUSTRY ENSURES SUFFICIENT AIRFLOW UP TO O.8"W.C.
SUFFICIENT AIRFLOW
TOTAL STATIC PRESSURE 0.4”
SUFFICIENT AIRFLOW
TOTAL STATIC PRESSURE 0.8”
Dual-Fual System
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT AIRFLOW ECM MOTOR
2.0 PROVIDES CONSISTENT AIR
FLOW OF UP TO 0.8 IN. W.C.;
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
OPTIONAL AUXILIARY HEAT KITS
UP TO 10KW
·
ALL-ALUMINUM COIL
SEER2 Up to
17.0
EER2 Up to
11.7
1.5-5 Tons
THE MOST COMPREHENSIVE SIZE OPTIONS
A
1.5-2 tons:
14.5”
21.0”
18.0”
B
1.5-2 tons:
17.5”
21.0”
18.0”
2.5-3 tons:
17.5”
21.0”
23.5”
C
2.5-4 tons:
21.0”
x
21.0”
x
24.0”
D
5 tons:
24.5”
21.0”
28.0”
VERSATILE APPLICATIONS
The Flexible
Multipoise Design
DURING WINTER:
DUAL-FUEL CAPABILITY
DURING SUMMER:
EFFICIENT COOLING
Cold
Experience the comfort and effiency of heat pumps.
Freezing
When the temperature drops below -22°F, you can use the gas furnace as an available backup.
Hot
Experience ultimate comfort with highly efficient and powerful cooling capabilities.

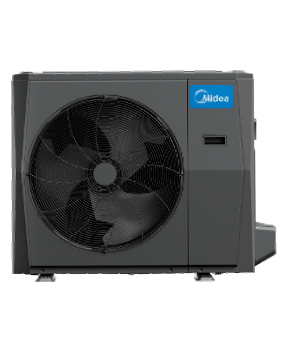

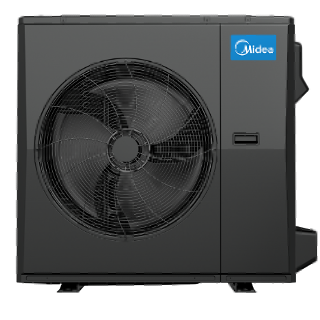

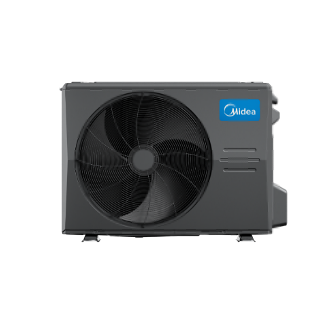

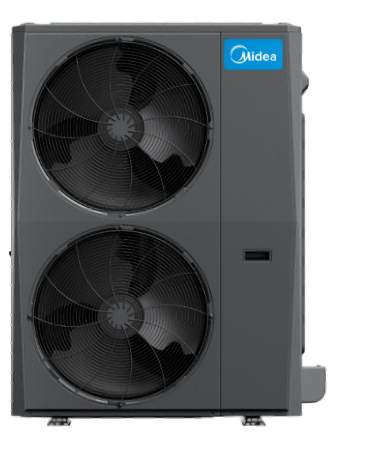

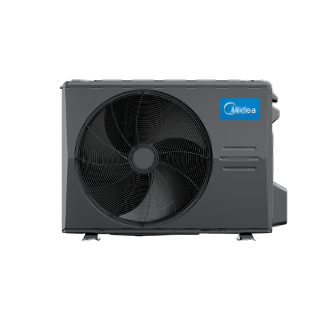

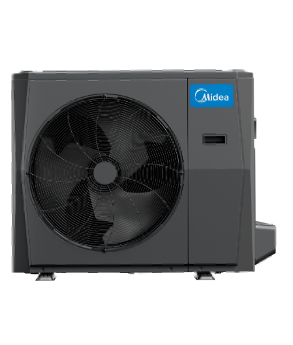

Compatible Outdoor Units
Learn More
+
Single-Zone Heat Pump
Single-Zone Extreme Heat
Multi-Zone Heat Pump
Multi-Zone Extreme Heat
Request a Quote
Videos
Learn More
+
Videos
Watch users stories and learn more about our product technology.
Watch Videos
Download Product Brochure
Learn More
+
EXPLORE CONTROLS
Comfort Easy
Comfort Extra
Thermostat Interface
Applicable to
BACnet Protocol
SmartHome
Comfort Easy
Two-way Communication Wired Controller
Midea Comfort Easy controller features easy-to-navigate screen and is equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
Request a Quote
Comfort Extra
Two-way Communication Wired Controller
Midea Comfort Extra controller features easy-to-use touchcontrol interface and simple toread and navigate screen. It’s equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting. Consider adding the Midea SmartHome APP control app to upgrade your system with remote access from your smartphone or tablet.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
This controller permits group operation for up to 16 indoor units.
Request a Quote
Thermostat Interface
Our thermostat interface allows HVAC thermostats and input/output controllers to control either residential or commercial indoor units through its connector.
Request a Quote
Applicable to BACnet Protocol
Midea AC systems can be easily integrated into an installation based on BACnet/IP communication protocol. The Intesis IN770AIR00x0000 gateway helps to access all the signals from each air conditioner unit and control the whole HVAC network.
You can easily control and monitor all of the installed air conditioner units through the BMS network.
Request a Quote
SmartHome
Midea SmartHome App
SmartHome is an app-based control system that enables controlling home comfort devices from the convenience of your smartphone or tablet. With this system, you can adjust the temperature and humidity of your rooms, set schedules, and even check health of your devices.
For even more convenience, SmartHome can be integrated with Amazon Alexa, Google Home smart home devices and allows IFTTT Applet integration. With SmartHome, you can enjoy easy control over the indoor environment, all from the palm of your hand.
